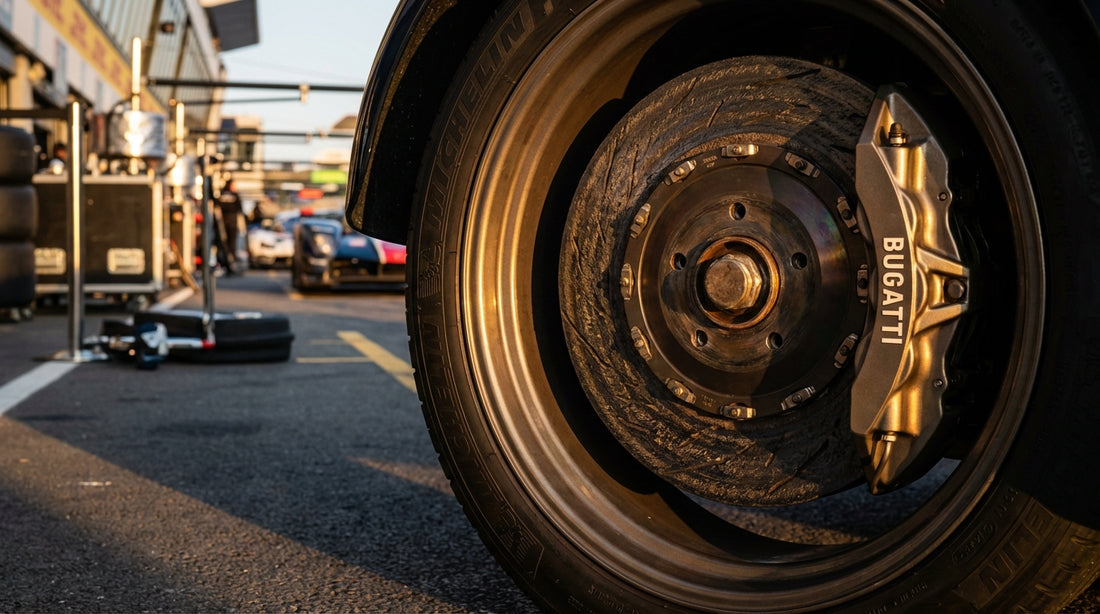

Bugatti Type 57 Revival: A Technical Deep Dive into Brake System Upgrades

L-Series vs. Stock: A Direct Comparison for the Type 57

What the Type 57 Needs from Modern Linings

The Bugatti Type 57’s original braking system can remain period-correct, but it benefits from predictable friction under changing temperature and humidity. Stock-style linings often show variability as the interface heats, where brake fade and longer pedal travel can appear during repeated stops, especially in modern traffic patterns.

L-Series Product Focus

• Daily-driving optimization: stable, repeatable friction for low-speed modulation and progressive stops.
• Durability: reduced wear rate to help extend service intervals without aggressive drum/rotor abrasion.
• Installation-friendly: designed to fit like stock components, minimizing rework and preserving factory geometry.

Performance Benefits Without Compromising Originality

Compared with stock-equivalent materials, L-Series linings are engineered to improve braking efficiency through more consistent friction behavior across typical road temperatures, supporting shorter, more repeatable stopping distances. The intent is to address the Type 57’s braking needs—confidence in traffic, consistent pedal feel, and controlled heat response—while keeping the car’s original hardware and appearance intact. View L-Series product details and specifications to confirm fitment and intended use for your Type 57 application.

\n

Analyzing Stock Brake Performance: Physics and Limitations

Original System Physics (Bugatti Type 57)

The Bugatti Type 57’s stock braking hardware reflects pre-war constraints: relatively small friction surfaces, limited ventilation, and drum geometries that store heat. In simplified terms, braking is a conversion of kinetic energy into thermal energy; stopping from speed forces the system to absorb energy at a rate proportional to vehicle mass and the square of velocity. The brake’s job is to generate wheel torque, where braking torque scales with line force, effective radius, and friction coefficient (T ≈ μ·N·r). If μ drops with temperature or the drum expands, required pedal effort rises sharply for the same deceleration.

Material Limits and Heat Dissipation

Many period components relied on cast iron for drums due to compressive strength and wear resistance, but cast iron’s thermal management is still constrained by mass, surface area, and airflow. Under repeated stops, heat accumulation elevates drum temperature, increasing diameter (reducing effective contact pressure) and promoting fade. These effects are amplified when linings are aged, glazed, or contaminated in revival projects. For an authoritative reference on the underlying material, see cast iron.

Stress Behavior and Common Revival Risks

• Heat soak during repeated braking reduces friction stability and lengthens stopping distances.
• Thermal expansion can increase pedal travel and reduce effective torque at the drum.
• Old linings may exhibit inconsistent μ, causing pull, grab, or sudden fade.
• Limited cooling means downhill or spirited driving can exceed safe thermal capacity quickly.

When Stock Brakes Become Inadequate

For revival builds expected to operate beyond gentle touring, upgrading friction materials, hydraulic integrity, and thermal capacity is often justified. For modernization options and component selection, consult brake upgrade guidance for classic restorations to align torque capacity and heat rejection with real-world duty cycles.

How CCB Materials Revolutionize Braking

What Carbon-Ceramic Discs Are Made Of

For a Bugatti Type 57, carbon-ceramic brake (CCB) discs are typically manufactured from carbon fiber reinforced silicon carbide (C/SiC): a carbon-fiber preform is infiltrated and converted into a ceramic matrix, producing a rotor that combines fiber toughness with ceramic hardness. The result is a composite engineered for high-energy braking where traditional grey cast iron can approach its thermal limits. For material background, see silicon carbide.

Performance Benefits vs. Traditional Iron Rotors

• Higher heat tolerance: improved resistance to fade under repeated high-speed stops due to greater thermal stability.
• Reduced unsprung/rotational mass: lighter discs can sharpen suspension response and reduce rotational inertia, aiding acceleration and steering feel.
• Longer service life: high wear resistance helps maintain thickness and friction consistency over time when correctly bedded and matched to compatible pads.
• More consistent performance: stable friction characteristics across a wider temperature band supports repeatable pedal effort and braking torque.

Integration Notes for a Type 57

Because the Type 57 is a historic platform, CCB retrofits require careful attention to caliper sizing, pad compound compatibility, and hub mounting geometry to manage clamp load and thermal expansion. For additional guidance, parts sourcing, and technical support, refer to carbon-ceramic brake disc options.

L-Series vs. Stock: A Direct Comparison for the Type 57

What “Stock” Braking Means on a Bugatti Type 57

Original Type 57 braking hardware was designed around period tire grip, lower average speeds, and infrequent high-energy stops. In modern traffic, repeated decelerations can elevate drum temperatures, increasing the risk of brake fade and inconsistent pedal feel. Owners also tend to preserve factory geometry and visible components, so any upgrade must be mechanically sympathetic and visually discreet.

How L-Series Addresses the Type 57’s Real-World Needs

L-Series components are engineered for daily-driving thermal stability and predictable friction behavior while maintaining the car’s original character. Fitment is optimized to reduce installation complexity and avoid irreversible modifications, supporting restorations where originality matters as much as stopping power.

Direct Benefits vs. Stock

• Improved braking efficiency through more stable friction under heat, reducing long-pedal events in stop-and-go use.
• Greater durability with materials selected to resist glazing and wear under repeated moderate braking.
• Installation-friendly design intent: compatible fit and serviceability to support routine maintenance without compromising period-correct presentation.

View L-Series product details and specifications to confirm configuration options for a Bugatti Type 57 application and the intended originality-preserving approach.

Brake Judder (Vibration Under Braking): Causes, Physics, and Fixes

What brake judder feels like (symptoms you can verify)

Brake judder is a vibration felt during braking that can present through the steering wheel, brake pedal, or entire vehicle body. It is typically speed-dependent and often becomes more pronounced as brake temperature rises.

• Steering wheel shake during moderate-to-hard braking (commonly front-axle related).
• Pedal pulsation that tracks wheel rotation frequency (not to be confused with ABS activation).
• Seat/floor vibration under braking (can indicate rear axle contribution or driveline sensitivity).
• Hot-spot smell or localized discoloration on rotors after severe use (thermal stress signature).

Root causes: why “warped rotors” is often an oversimplification

In engineering terms, most brake judder is caused by brake torque variation (BTV), where the braking torque fluctuates once per wheel rotation (or in harmonics). This can be driven by rotor geometry, friction material behavior, or installation errors.

• Disc thickness variation (DTV): microns of thickness variation can create measurable torque oscillation, especially at higher clamp loads.
• Lateral runout: rotor “wobble” relative to the hub can lead to pad knock-back and uneven material transfer, which can later manifest as DTV.
• Uneven pad material transfer: non-uniform friction film (“hot spotting”) can mimic rotor deformation and produce cyclic torque changes.
• Thermal overload: repeated high-energy stops can induce localized heating, phase changes, or stress gradients that distort rotor geometry.
• Installation and hub issues: corrosion between rotor and hub, incorrect torque sequence, or debris can introduce runout from the start.

The physics: how small imperfections become big vibrations

Brake judder is an NVH problem rooted in friction-induced excitation. When the pad clamps the disc, any periodic change in effective radius, thickness, or friction coefficient produces a periodic change in brake torque. That excitation can couple into suspension and steering components, amplifying what the driver feels.

Heat is a key multiplier: the rotor’s temperature field affects expansion and the stability of the friction layer. If the system crosses thresholds where friction film stability degrades, torque variation increases. In severe cases, microstructural changes can occur, but more commonly the issue is non-uniform transfer layer formation. A useful framing term here is tribology, the science of friction, wear, and lubrication, which directly governs pad/disc interface behavior.

Diagnosis checklist (what to measure before replacing parts)

• Measure lateral runout at the rotor face with a dial indicator (with the rotor indexed to the hub).
• Measure DTV with a micrometer at multiple points around the disc circumference.
• Inspect hub face condition: remove rust scale, check for burrs, confirm full seating.
• Confirm wheel nut torque and pattern: uneven clamping can introduce distortion/runout.
• Check pad condition: glazing, taper wear, cracking, or uneven deposits indicate thermal or alignment problems.

Solutions: corrective actions that actually eliminate judder

The correct fix depends on the dominant driver of BTV. Replacing parts without addressing runout, bedding, and heat management often leads to recurrence.

• Correct runout at the source: clean the hub, verify rotor seating, and torque wheels correctly; consider indexing the rotor to minimize measured runout.
• Restore rotor condition: machine or replace rotors if DTV/runout is outside specification; ensure both sides of the axle are addressed.
• Re-bed pads properly: establish an even transfer layer using the pad manufacturer’s bedding procedure, and avoid holding the brakes stationary when hot.
• Upgrade friction materials for duty cycle: choose pads with thermal stability matched to repeated high-energy stops.
• Address heat capacity: for demanding use, consider larger rotors, improved ventilation, or airflow management to reduce peak temperatures.

When an upgrade is justified (and how to choose)

If judder occurs after repeated high-speed braking, towing, track use, or mountainous descents, the braking system may be operating beyond its thermal design envelope. In that case, selecting components engineered for higher thermal loads is more effective than repeatedly replacing OE parts. For readers evaluating higher-performance options, see this brake pad and rotor selection guide for fitment and compound considerations.

Frequently Asked Questions About Brake Upgrades for the Bugatti Type 57

1) What are the key benefits of carbon ceramic brakes for vintage cars like the Bugatti Type 57?

When engineered correctly, carbon ceramic brake (CCB) conversions can provide measurable performance gains while reducing thermal stress on surrounding components.

• Higher thermal capacity and resistance to brake fade during repeated stops or long descents.
• Lower unsprung mass versus many iron disc retrofits, improving ride control and wheel compliance over rough surfaces.
• Stable friction at elevated disc temperatures, reducing pedal travel growth in hard use.
• Corrosion resistance, particularly beneficial when the car is stored for long periods.

2) How does the installation process work, and is it reversible?

A proper installation starts with measuring hub, upright, and wheel clearance, then specifying disc diameter/thickness, caliper piston area, and master-cylinder compatibility to maintain correct hydraulic ratio. Brackets are designed to locate the caliper without inducing bending loads. If executed as a bolt-on kit using existing mounting points, the upgrade can be largely reversible by refitting original drums/discs and lines; irreversible steps typically include machining hubs or altering uprights, which should be avoided for collector cars.

3) What is the expected lifespan and maintenance required for CCB discs?

CCB disc life is highly duty-cycle dependent. In road use with correct pad choice and bedding, discs may last many tens of thousands of miles; track-style heat cycling, aggressive pads, or debris ingestion can shorten life. Maintenance focuses on:

• Using compatible pads to prevent surface damage and uneven transfer layers.
• Regular inspection for chips, heat checking, and edge delamination.
• Keeping caliper seals and dust management in good condition.

4) How do CCB brakes affect the car's original aesthetics and value?

Visible calipers and large rotors can look non-original behind period wheels. To protect value, prioritize discreet finishes, minimal visual impact, and documentation showing a reversible, non-destructive installation. Keeping the original brake system preserved and boxed is often the best value-retention strategy. For component options and fitment guidance, see .

Reviving the Bugatti Type 57 with Modern Braking Technology

Why modern CCB brakes suit a Type 57 restoration

Upgrading a Bugatti Type 57 with carbon-ceramic brakes (CCB) can modernize stopping performance while respecting the car’s long-term preservation goals. Properly engineered CCB conversions deliver stable friction over a wider temperature window, helping reduce brake fade during repeated decelerations and spirited touring.

Performance, safety, and preservation benefits

• Higher thermal capacity supports consistent pedal feel and shorter, repeatable stops.
• Lower wear rates can reduce rotor and pad dust, supporting cleaner wheel and suspension components.
• Potential reduction in unsprung mass improves ride control and steering response when paired with compatible hubs and calipers.
• Improved modulation aids safety in wet or variable road conditions.

Next step

Contact us for a personalized consultation to assess packaging, caliper mounting, hydraulic bias, and heat management for your Type 57 restoration plan.
